Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).
Low energy consumption: the three-in-one plate heat exchanger is adopted, and the whole machine can save 20~30% of energy consumption;
Low pressure drop: the pressure loss of the whole machine is less than 0.015MPa, which is lower than the national standard;
Low dew point: under standard working conditions, the pressure dew point is as low as 2~10℃, and the electronic bypass valve is adopted, making the system more stable;
Environmentally friendly and durable: the whole series adopts environmentally friendly refrigerant R410a/R407C, which meets international environmental standards and has a maximum pressure of 1.6MPa;

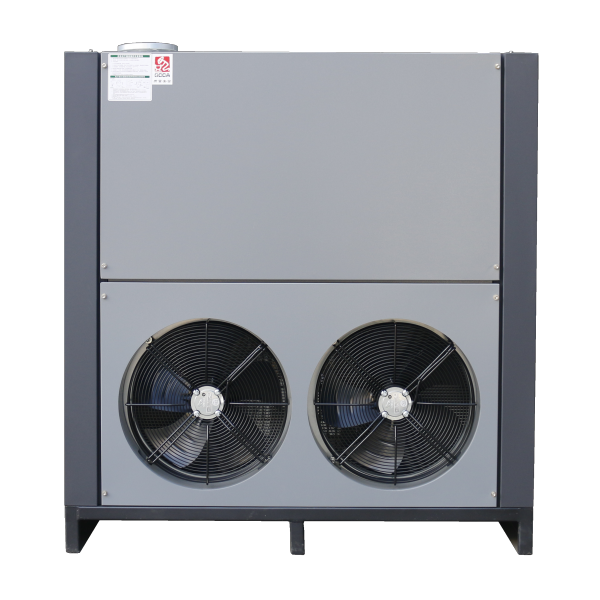

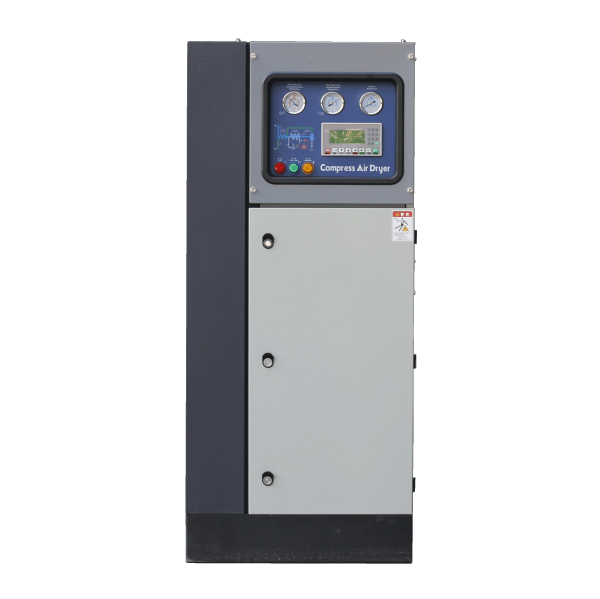

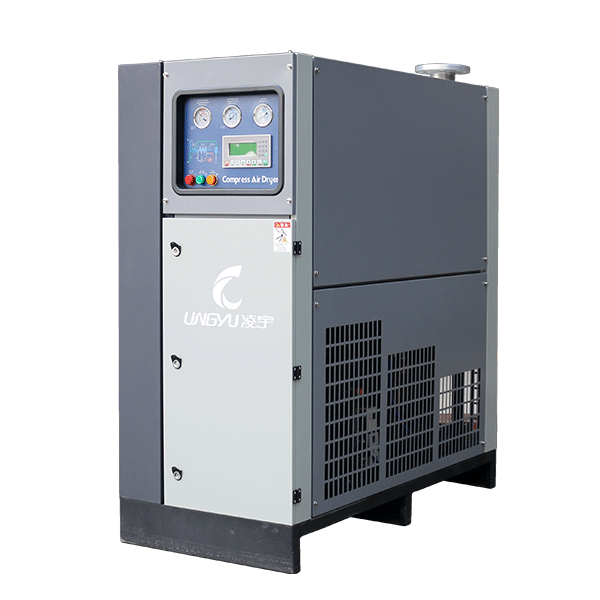

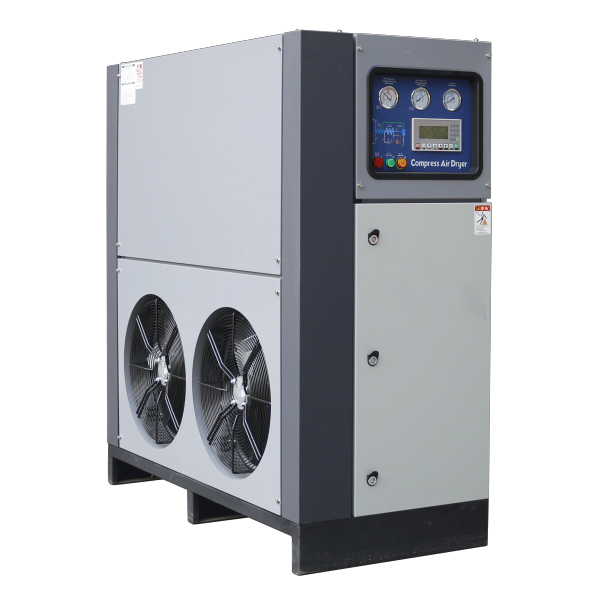

The Refrigerated Air Dryer is designed to provide stable and efficient moisture removal for industrial compressed air systems. It works by cooling hot, moisture-laden compressed air to condense water vapor into liquid, which is then separated and discharged from the system. This process helps deliver clean and dry compressed air to downstream equipment and production lines.
The dryer maintains an outlet pressure dew point of 2°C to 10°C, which is suitable for a wide range of industrial applications. With optional air-cooled or water-cooled configurations, the system can be adapted to different installation conditions and operating environments. Its efficient refrigeration design helps reduce moisture-related damage, improve air quality, and support stable long-term operation.
To ensure stable performance and reliable operation, the refrigerated air dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be installed in a clean, well-ventilated environment and matched to the actual system pressure, airflow, and temperature conditions.
| Processing Capacity (m³/min) | Power Supply (V/Hz) | Total Power (kW) | Air Inlet/Outlet | Dimensions (mm) L × W × H |
|---|---|---|---|---|
| 1.50 | 220/50 | 0.70 | RC1″ | 500 × 380 × 740 |
| 2.50 | 220/50 | 0.79 | RC1″ | 500 × 380 × 740 |
| 3.80 | 220/50 | 0.90 | RC1″ | 520 × 450 × 990 |
| 6.50 | 220/50 | 1.20 | RC1″-z | 520 × 450 × 990 |
| 10.5 | 220/50 | 2.00 | RC2″ | 670 × 560 × 1330 |
| 13.5 | 220/50 | 2.30 | RC2″ | 670 × 560 × 1330 |
| 17.0 | 220/50 | 2.80 | RC1″-1z” | 1200 × 700 × 1480 |
| 21.5 | 380/50 | 3.90 | DN80 | 1460 × 700 × 1480 |
| 25.0 | 380/50 | 4.90 | DN80 | 1480 × 740 × 1480 |
| 28.5 | 380/50 | 4.90 | DN80 | 1480 × 740 × 1600 |
| 32.0 | 380/50 | 5.70 | DN80 | 1480 × 740 × 1600 |
| 37.0 | 380/50 | 7.80 | DN100 | 1640 × 840 × 1750 |
| 45.0 | 380/50 | 8.80 | DN100 | 1640 × 840 × 1750 |
| 55.0 | 380/50 | 10.1 | DN125 | 1740 × 840 × 1750 |
| 65.0 | 380/50 | 10.1 | DN125 | 1890 × 840 × 1803 |
| 75.0 | 380/50 | 11.1 | DN125 | 1980 × 950 × 1990 |
| 85.0 | 380/50 | 13.7 | DN125 | 2220 × 950 × 2063 |
Note: For processing capacities above 85 m³/min, or for special requirements related to specifications, materials, or operating temperature, please contact our company or authorized distributors. All specifications are subject to change without prior notice.
In the Philippines, where high humidity, warm ambient temperatures, and seasonal heavy rainfall can increase the risk of condensation in compressed air systems, the Refrigerated Air Dryer is especially suitable for industrial users that require stable moisture removal, clean and reliable compressed air, and flexible installation options for different plant conditions. With a stable outlet pressure dew point of 2°C to 10°C and optional air-cooled or water-cooled configurations, it is well suited for general-purpose compressed air treatment in tropical operating environments.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The 25/35/50 CFM Air-Cooled Refrigerated Air Dryer from Lingyu is a compact and energy-efficient solution for small to medium compressed air systems. It efficiently removes moisture and maintains a stable dew point, providing clean, dry air for tools, machinery, and production processes.
With its reliable air-cooled design, low power consumption, and easy operation, this dryer series helps improve air system performance, reduce maintenance costs, and protect equipment from moisture-related damage.
The 1340 SCFM refrigerated air dryer (water cooled) is a high-performance moisture removal system designed for industrial applications that demand clean and dry compressed air. Engineered for reliability and efficiency, this water-cooled model uses chilled water circulation to condense and remove moisture from compressed air streams with a rated capacity of 1340 SCFM.
Whether your facility operates in high-temperature environments or uses centralized water cooling systems, the 1340 SCFM refrigerated air dryer (water cooled) is your best solution for delivering constant dew point control and protection for downstream equipment.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1 bar;
Frequency conversion energy saving: Brand inverter, frequency conversion range 30Hz~90Hz, by changing the electromechanical frequency of the dryer to match the actual working conditions;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensure the machine runs in the best state, and standard RS-485 communication interface.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient flow cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1bar;
Low dew point: The new optimized integrated three-in-one design and unique water separation design make the dew point more guaranteed;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensuring that the machine runs in the best state, and standard RS-485 communication interface.
