Lingyu offers a complete range of high-performance compressed air dryers, including refrigerated air dryers and desiccant air dryers, designed to meet diverse industrial requirements.
Backed by advanced technology and strict quality control, our air dryer solutions deliver clean, dry, and oil-free compressed air, effectively protecting your equipment and production processes from moisture and oil contamination.
Explore our full product range below and request a quote to find the ideal air dryer for your compressed air system.
Applicable fluids: compressed air, non-corrosive air
Rated inlet pressure: 0.7MPa (0.6MPa~1.0MPa is allowed,other pressure levels are available for customization)
Rated inlet temperature: 10℃~30℃ (limit inlet temperature: ≤40℃)
Inlet air dew point: ≤15℃
Outlet pressure dew point: ≤-20℃ (-40℃ optional)
Adsorbent: activated alumina + high-performance molecular sieve
Rated ambient temperature: 35℃ (2℃~45℃ can be used)
High-efficiency adsorbents are used, with strong adsorption capacity and wear resistance, ensuring stable dew point and no powdering during long-term use;
The heater is equipped with pressure protection to prevent the heater from dry burning, which increases the service life of the heater.
Low operating noise;
High-performance pneumatic valves are used;
Fully electronic programmable controller is used;
Automatic pressure charging function ensures the service life of the adsorbent;
The 1340 SCFM refrigerated air dryer (water cooled) is a high-performance moisture removal system designed for industrial applications that demand clean and dry compressed air. Engineered for reliability and efficiency, this water-cooled model uses chilled water circulation to condense and remove moisture from compressed air streams with a rated capacity of 1340 SCFM.
Whether your facility operates in high-temperature environments or uses centralized water cooling systems, the 1340 SCFM refrigerated air dryer (water cooled) is your best solution for delivering constant dew point control and protection for downstream equipment.
Low energy consumption: the three-in-one plate heat exchanger is adopted, and the whole machine can save 20~30% of energy consumption;
Low pressure drop: the pressure loss of the whole machine is less than 0.015MPa, which is lower than the national standard;
Low dew point: under standard working conditions, the pressure dew point is as low as 2~10℃, and the electronic bypass valve is adopted, making the system more stable;
Environmentally friendly and durable: the whole series adopts environmentally friendly refrigerant R410a/R407C, which meets international environmental standards and has a maximum pressure of 1.6MPa;
The 4238 CFM refrigerated air dryer (water cooled) is a high-capacity, industrial-grade dryer designed to eliminate moisture from large compressed air systems. Built with a powerful water-cooled refrigeration circuit, this dryer ensures reliable and continuous moisture removal with a stable pressure dew point. For industries that demand high airflow rates and dependable air quality, the 4238 CFM refrigerated air dryer (water cooled) is the ideal solution.
Whether operating in petrochemical, textile, food processing, or manufacturing sectors, the 4238 CFM refrigerated air dryer provides exceptional performance, energy efficiency, and long-term durability.
The communication can meet the user's requirements such as RS-485 (standard), IoT connection, etc.
The independently developed EBZ200-2 multi-core driver can save more than 10% of the comprehensive energy consumption compared with the fixed cycle mode;
The optional dew point energy-saving control can extend the adsorption time and reduce the comprehensive energy consumption by more than 30% under load fluctuation conditions;
Customized high-performance adsorbent, 20% filling margin;
304 stainless steel control gas pipeline, specially designed diverter, high adsorbent utilization rate, small gas pressure loss;
7-inch Siemens touch screen programmable controller, dynamic monitoring of operation process；
Quiet operation with low noise;
Utilizes high-performance pneumatic valves;
Equipped with a fully electronic programmable controller;
Automatic pressure loading function ensures the longevity of the desiccant;
Heater includes pressure protection to prevent dry burning, extending the heater’s service life;
Uses high-performance desiccant with strong adsorption and wear resistance, ensuring stable dew point and preventing powdering during long-term operation.
This 75 CFM (air-cooled) refrigerated air dryer is a reliable and energy-efficient solution, specifically designed to remove moisture from compressed air systems. It is ideal for small to medium industrial applications, providing clean, dry compressed air with a stable pressure dew point. With its compact design and air-cooled operation, this 75 CFM (air-cooled) refrigerated air dryer ensures long-term, stable performance while minimizing maintenance requirements.
Whether you operate a workshop, packaging line, or small production facility, the 75 CFM refrigerated air dryer (air-cooled) is the perfect choice to protect your pneumatic tools and equipment from moisture-related issues.
Integrated design: small footprint, easy to install, after years of technical research, modern technology and equipment production, each product is strictly tested to meet the use of standards before leaving the factory.

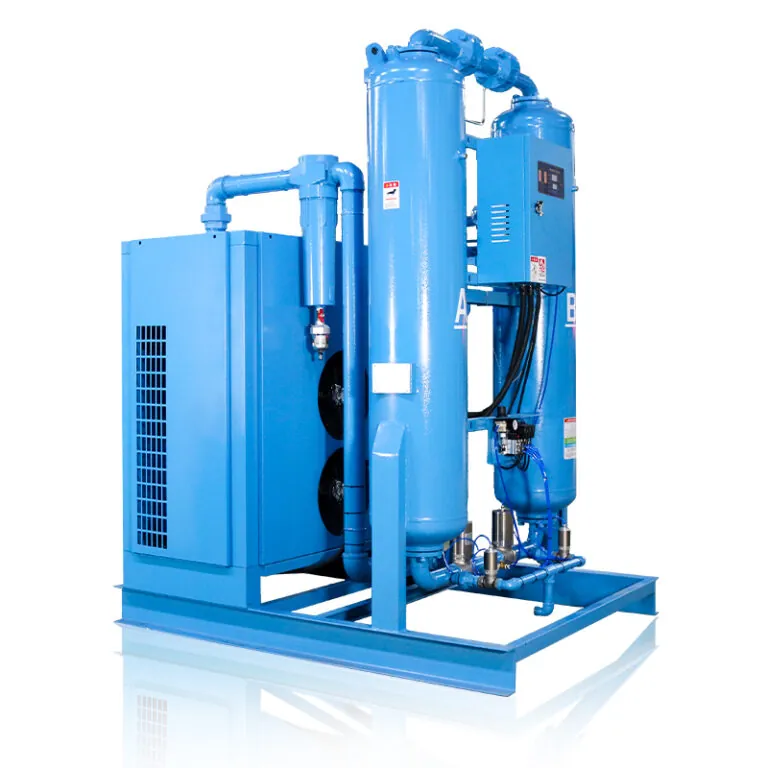

Advanced design of refrigeration drying system and adsorption drying system
Integrated design: small footprint, easy to install, after years of technical research, modern technology and equipment production, each product is strictly tested to meet the use of standards before leaving the factory.
Ensure safe use in flammable and explosive environments
Resists chemical corrosion and extends service life
Special sealing technology prevents flammable gases or dust from entering the interior of the machine
Regeneration gas consumption can be adjusted, with energy saving and dew point adjustment function
The independently developed EBZ200-2 multi-core driver can save more than 10% of the comprehensive energy consumption compared with the fixed cycle mode;
The communication can meet the user's requirements such as RS-485 (standard), IoT connection, etc.
The optional dew point energy-saving control can extend the adsorption time and reduce the comprehensive energy consumption by more than 30% under load fluctuation conditions;
Customized high-performance adsorbent, 20% filling margin;
304 stainless steel control gas pipeline, specially designed diverter, high adsorbent utilization rate, small gas pressure loss;
7-inch Siemens touch screen programmable controller, dynamic monitoring of operation process；
A compressed air dryer is a critical component in any compressed air system, designed to remove moisture and contaminants from compressed air. Although different drying technologies operate on distinct principles, the ultimate goal remains the same: to supply clean, dry, and stable compressed air that protects downstream equipment and ensures consistent production quality.
Refrigerated air dryers operate on the principle of condensation, similar to a household refrigerator. Incoming compressed air is cooled, causing water vapor to condense into liquid, which is then automatically separated and discharged. The dried air is reheated to prevent condensation within downstream pipelines.
Lingyu refrigerated air dryers are engineered for low pressure drop and stable performance. Models equipped with variable frequency drives automatically adjust to fluctuating air demand, significantly improving energy efficiency and operational stability.
Desiccant air dryers remove moisture from compressed air through the adsorption process. Hygroscopic materials such as activated alumina or molecular sieves capture water molecules as compressed air passes through the adsorption towers.
While one tower dries the air, the other undergoes regeneration to release absorbed moisture, ensuring a continuous supply of ultra-dry compressed air. Lingyu desiccant air dryers feature blower-heated regeneration technology, offering outstanding energy efficiency, simplified maintenance, and reliable performance for critical industrial applications.
Choosing the ideal compressed air dryer is crucial for maximizing efficiency and longevity of your compressed air system. To make the best investment, consider the following key factors:
1. Air Quality Requirements
Start by determining the required pressure dew point for your application.
• High Dew Point (3°C to 10°C): Suitable for general manufacturing processes. A refrigerated air dryer is a cost-effective and widely used solution.
• Low Dew Point (-20°C to -70°C): Required for critical applications such as electronics, pharmaceuticals, and instrumentation. In these cases, a desiccant air dryer is essential to prevent moisture-related failures.
2. Air Flow & Capacity (CFM / m³/min)
Always ensure the compressed air dryer capacity matches your system’s maximum airflow demand. An undersized air dryer may result in poor air quality and system instability. Selecting a dryer designed to handle peak flow conditions ensures consistent performance and long-term reliability.
3. Operating Conditions
Operating conditions have a direct impact on dryer performance. Key factors include ambient temperature, inlet air temperature, system pressure, and installation location. Evaluating these parameters helps determine whether a central compressed air dryer or a point-of-use solution is more suitable.
4. Energy Efficiency and Cost
Beyond the initial purchase price, consider the total cost of ownership. Energy consumption is the primary long-term operating expense. Advanced compressed air dryers with variable frequency control or blower-heated regeneration can significantly reduce energy usage and operating costs over the equipment’s lifespan.
When selecting an air dryer for your compressed air system, efficiency, reliability, and intelligent operation are critical to ensuring smooth and cost-effective performance. Lingyu designs air dryers with cutting-edge technology and strict quality standards, delivering solutions that go beyond basic drying functions. Below, we highlight the key benefits and features that make our air dryers the trusted choice for diverse industrial applications.
1. Superior Energy Efficiency
Advanced technologies such as frequency conversion and blower-heated regeneration enable our air dryers to adapt to real-time operating conditions, reducing energy consumption by up to 30%.
2. Reliable and Stable Operation
Manufactured under strict ISO standards and supported by a rigorous 5S quality control system, Lingyu air dryers ensure stable dew point control and long-term operational reliability.
3. Intelligent Control and Connectivity
Equipped with PLC-based control systems and digital displays, our air dryers support intuitive operation. Selected models feature RS-485 communication for seamless integration into industrial IoT systems.
4. Customized Solutions and Global Support
From system consultation and customized design to commissioning and after-sales service, Lingyu provides end-to-end support to ensure optimal performance of your compressed air system.
There are four main types of compressed air dryers, each designed for specific applications and operating conditions:
Refrigerated Compressed Air Dryer – Ideal for general industrial use and standard moisture removal requirements.
Desiccant Compressed Air Dryer – Designed for applications requiring ultra-low dew points and high air quality.
Membrane Compressed Air Dryer – Compact and efficient, suitable for point-of-use installations.
Deliquescent Compressed Air Dryer – A simple and low-maintenance solution for outdoor or remote environments.
Selecting the right compressed air dryer depends on your air quality requirements, operating conditions, and long-term efficiency goals.
