Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).
The air is pure, no secondary pollution, integrated skid-mounted design, compact structure, stable dew point, remarkable water removal effect.
Stainless steel plate heat exchanger with high heat exchange efficiency and compact structure.
Independent stainless steel steam-water separator with high water separation efficiency, timely separates condensed water and other impurities from compressed air and discharges them out of the machine.
The whole machine is made of stainless steel or aluminum alloy, which will not rust and prevent secondary contamination of compressed air.
Single chip intelligent control, real-time display of evaporation temperature, including over-temperature alarm, electrical fault, high pressure alarm, low pressure alarm and other functions.

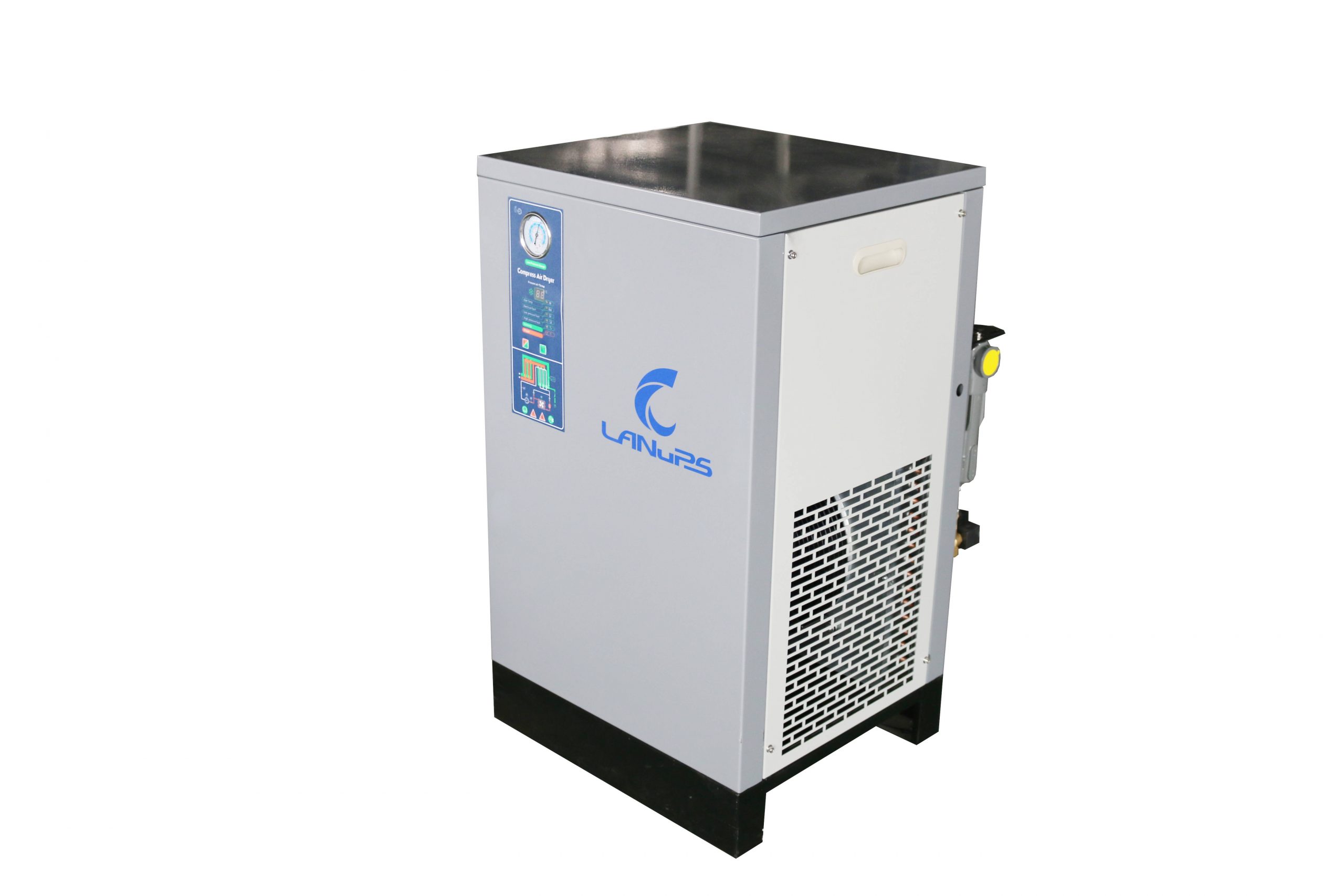

The high-pressure refrigerated air dryer is designed for compressed air systems that require stable moisture removal under elevated working pressure. It adopts a combined drying process of double-stage precooling, refrigeration, condensation, and five-stage gas-water separation to ensure reliable dew point performance and efficient condensate removal.
During operation, hot and moisture-laden compressed air first passes through the double-stage precooler, where part of the heat is removed before entering the refrigeration circuit. The air is then cooled further by the refrigerant system, causing water vapor to condense into liquid. After condensation, the compressed air passes through a five-stage gas-water separation system, which efficiently removes the condensed moisture and delivers dry compressed air to the downstream system.
With its air-cooled heat dissipation design, the dryer uses forced heat exchange between the ambient air and refrigerant to maintain stable operation. This structure helps ensure a consistent outlet air dew point of +2°C to +10°C, protecting pipelines, valves, pneumatic components, and end-use equipment from moisture-related problems.
To ensure stable drying performance and reliable long-term operation, the refrigerated air dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be installed in a clean and well-ventilated environment. Stable inlet conditions and proper system layout help maintain drying efficiency, reduce pressure loss, and improve equipment service life.
| Processing Capacity (m³/min) | Input Power (kW) | Connection Size | Weight (kg) | Dimensions (mm) L × W × H |
|---|---|---|---|---|
| 3.8 | 0.44–1.25 | G1½” | 105 | 1000 × 600 × 1050 |
| 7.0 | 0.48–1.42 | G1½” | 130 | 1100 × 600 × 1100 |
| 10.5 | 0.60–1.90 | G2″ | 155 | 1250 × 700 × 1155 |
| 13.5 | 0.80–3.60 | G2½” | 350 | 1400 × 850 × 1350 |
| 17.0 | 1.02–3.61 | DN80 | 450 | 1570 × 800 × 1200 |
| 21.5 | 1.02–4.03 | DN80 | 480 | 1500 × 950 × 1400 |
| 25.0 | 1.4–5.5 | DN80 | 530 | 1835 × 940 × 1480 |
| 28.5 | 1.40–6.20 | DN80 | 540 | 1835 × 940 × 1480 |
| 32.0 | 2.02–7.58 | DN80 | 560 | 1835 × 940 × 1480 |
| 37.0 | 1.83–6.75 | DN100 | 680 | 1900 × 980 × 1580 |
Note: For special specifications or requirements related to pressure, materials, temperature, or larger air volume, customized solutions are available. The above data is for reference only and may change without prior notice.
This high-pressure refrigerated air dryer is suitable for industries and applications that require stable moisture control, reliable compressed air quality, and higher working pressure.
Especially suitable for laser cutting applications, where dry and stable compressed air helps protect cutting heads, pneumatic valves, and gas control components while improving cutting consistency.
Used in CNC equipment, cutting systems, and metal fabrication lines where moisture-free compressed air helps reduce corrosion and improve equipment reliability.
Provides dry compressed air for production lines, pneumatic tools, and automated systems that require consistent air quality under continuous operation.
Suitable for compressed air systems serving sensitive devices and precision equipment, where moisture can negatively affect performance and product quality.
Used in workshops and manufacturing plants where dry compressed air supports pneumatic control, assembly systems, and industrial automation.
Ideal for compressed air networks operating at 10–16 bar, especially where standard low-pressure refrigerated dryers may not meet system requirements.
