Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
Applicable fluids: compressed air, non-corrosive air
Rated inlet pressure: 0.7MPa (0.6MPa~1.0MPa is allowed,other pressure levels are available for customization)
Rated inlet temperature: 10℃~30℃ (limit inlet temperature: ≤40℃)
Inlet air dew point: ≤15℃
Outlet pressure dew point: ≤-20℃ (-40℃ optional)
Adsorbent: activated alumina + high-performance molecular sieve
Rated ambient temperature: 35℃ (2℃~45℃ can be used)

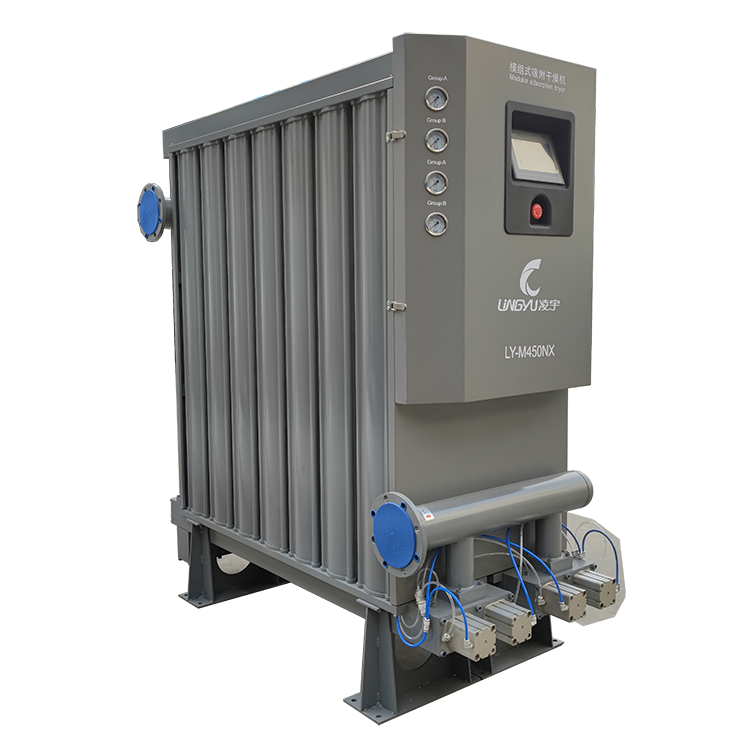

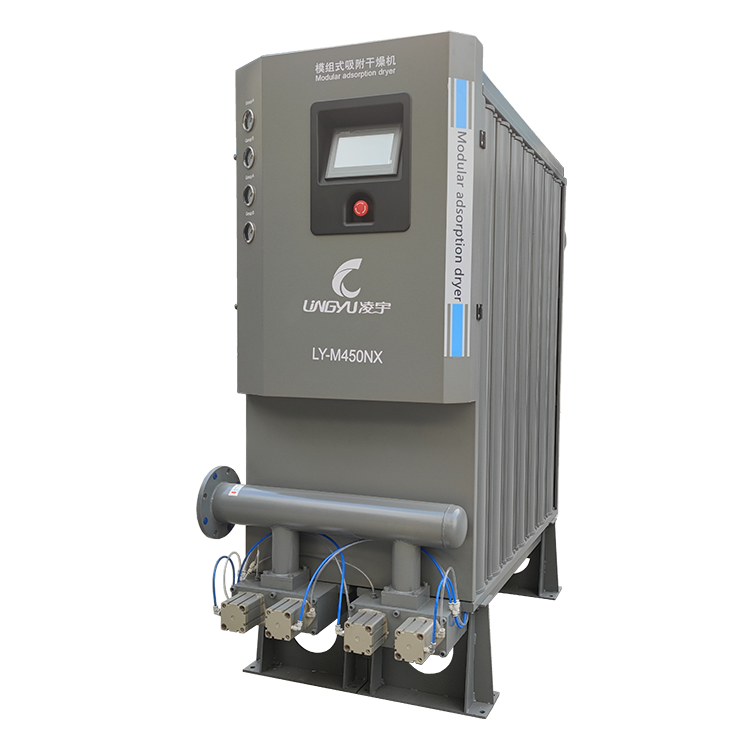

The Modular Adsorption Air Dryer is designed to deliver clean, dry, and reliable compressed air through an energy-saving adsorption regeneration process. During operation, moisture in the compressed air is absorbed by high-quality desiccant, while a controlled portion of the dried air is used to regenerate the adsorbent and restore its drying capacity. With regeneration gas consumption maintained at only 5%–8%, the system achieves stable performance while reducing overall operating costs.
To ensure air quality, all compressed-air contact surfaces are treated with oxidation and rust prevention technology, which effectively minimizes the risk of secondary contamination. This makes the dryer especially suitable for industries with strict air quality requirements, such as food and pharmaceutical production.

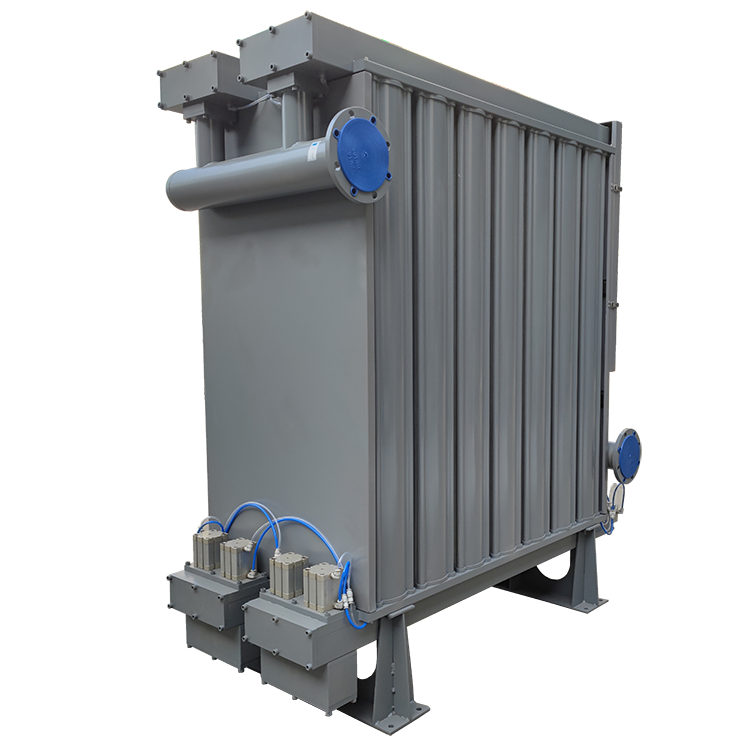

The dryer adopts an integrated aviation-grade magnesium-aluminum extruded alloy structure, combining compact size, light weight, and high durability. Its one-piece modular design allows it to pass through standard doors easily and makes installation more flexible in different working environments.
To ensure stable performance and long service life, the modular adsorption air dryer is designed with the following technical features and operating advantages:
| Processing Capacity (m³/min) | Connection Size | Equipment Weight (kg) | Power Supply and Voltage (V/Hz) | Dimensions (mm) L × W × H |
|---|---|---|---|---|
| 1.5 | G1″ | 35 | 220/50 | 460 × 300 × 752 |
| 2.5 | G1″ | 60 | 220/50 | 460 × 300 × 1246 |
| 3.8 | G1″ | 70 | 220/50 | 460 × 300 × 1546 |
| 6.5 | G1-2″ | 190 | 220/50 | 400 × 778 × 1735 |
| 10.5 | G2″ | 285 | 220/50 | 400 × 952 × 1735 |
| 13.5 | G2-12″ | 375 | 220/50 | 400 × 1126 × 1735 |
| 17.0 | G2-2″ | 470 | 220/50 | 400 × 1300 × 1735 |
| 21.5 | G2-2″ | 565 | 220/50 | 400 × 1474 × 1735 |
| 25.0 | G2-12″ | 660 | 220/50 | 400 × 1648 × 1735 |
| 28.5 | DN80 | 755 | 220/50 | 762 × 1126 × 1760 |
| 37.0 | DN100 | 940 | 220/50 | 762 × 1300 × 1760 |
| 41.5 | DN100 | 1130 | 220/50 | 762 × 1474 × 1760 |
| 50.0 | DN100 | 1320 | 220/50 | 762 × 1648 × 1760 |
| 55.0 | DN125 | 1510 | 220/50 | 762 × 1884 × 1760 |
Note: For air volumes above 55 m³/min, or for special requirements related to specifications, materials, or temperature, please contact our company or dealer for technical support. The above data is for reference only and may change without prior notice. For other specifications, please contact our company directly.
The Modular Adsorption Air Dryer is widely used in industries and compressed air systems that require clean air quality, compact installation, and low maintenance costs.
The anti-rust and oxidation-treated compressed-air contact surfaces help reduce secondary contamination, making the dryer suitable for food processing, packaging, and conveying systems.
Its clean internal design and long-term stable performance make it suitable for pharmaceutical manufacturing processes that demand reliable and contamination-controlled compressed air.
The dryer is suitable for workshops and production facilities that require economical compressed air drying, low maintenance, and long service life.
Because of its integrated modular structure and ability to pass through standard doors, it is especially suitable for sites with limited installation space or projects requiring flexible equipment placement.
Its modular design makes it a practical choice for multiple-point air treatment applications in factories, processing plants, and other industrial venues.
