Supports customization with processing capacities of up to 17,660 CFM (~500 m³/min).
Quiet operation with low noise;
Utilizes high-performance pneumatic valves;
Equipped with a fully electronic programmable controller;
Automatic pressure loading function ensures the longevity of the desiccant;
Heater includes pressure protection to prevent dry burning, extending the heater’s service life;
Uses high-performance desiccant with strong adsorption and wear resistance, ensuring stable dew point and preventing powdering during long-term operation.

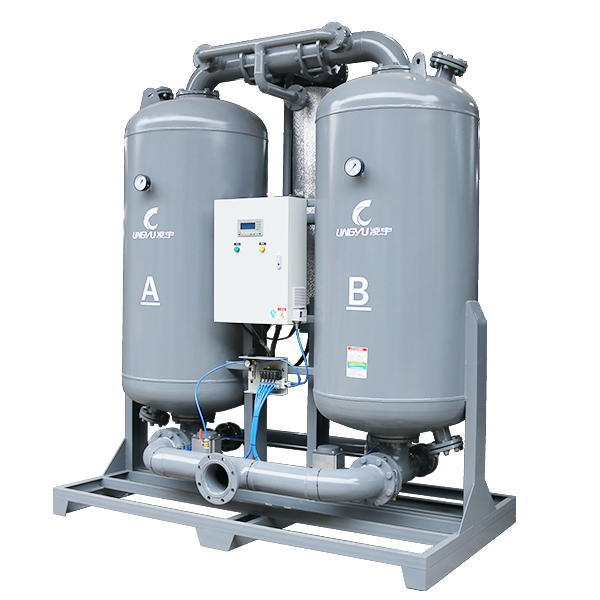

The micro-heat regenerated adsorption dryer operates on the principle of temperature swing adsorption (TSA). In this process, the adsorbent absorbs moisture at normal temperature, and when heated, the absorbed moisture is released back into the gas phase. The process provides the necessary heat for desorption from an external heat source while using part of its own dried gas as a heat carrier. During thermal regeneration, the complete release of moisture into the gas phase does not mean the adsorbent is fully regenerated. The original adsorption activity is only restored when the temperature returns close to its initial value. Therefore, regeneration in a micro-heat adsorption dryer must follow a two-step process: first “heating and desorption,” followed by “cooling and adsorption”; desorption is only one step in the overall adsorbent regeneration process.
Applicable media: Compressed air, non-corrosive gases
Rated inlet pressure: 0.7 MPa (allowable range: 0.6 MPa–1.0 MPa; other pressures customizable)
Rated inlet temperature: 10℃–30℃ (maximum temperature: ≤40℃)
Average regeneration gas consumption: 4%–8%
Outlet dew point: ≤-40℃
Adsorbent: Activated alumina + high-performance molecular sieves
Rated ambient temperature: 35℃ (operable range: 2℃–45℃)
| Processing Capacity (m³/min) | Power Supply V/Hz | Total Power kW | Inlet/Outlet Connection | Equipment Weight kg | Dimensions (L×W×H mm) |
|---|---|---|---|---|---|
| 1.5 | 380/50 | 1.7 | G1″ | 125 | 725×630×1795 |
| 2.5 | 380/50 | 1.7 | G1″ | 180 | 840×570×1695 |
| 3.8 | 380/50 | 2.5 | G1¾” | 310 | 1020×610×1690 |
| 6.5 | 380/50 | 3.7 | G1½” | 436 | 1160×680×1860 |
| 10.5 | 380/50 | 3.7 | G2″ | 610 | 1200×720×2180 |
| 13.5 | 380/50 | 6.1 | G2″ | 720 | 1260×780×2230 |
| 17.0 | 380/50 | 10.0 | DN65 | 850 | 1350×930×2440 |
| 21.5 | 380/50 | 10.0 | DN80 | 1000 | 1470×1000×2270 |
| 25.0 | 380/50 | 10.0 | DN80 | 1100 | 1460×1000×2470 |
| 28.5 | 380/50 | 10.0 | DN80 | 1280 | 1560×1070×2450 |
| 32.0 | 380/50 | 13.1 | DN80 | 1350 | 1600×1050×2650 |
| 37.0 | 380/50 | 13.1 | DN100 | 1550 | 1700×1100×2680 |
| 41.5 | 380/50 | 13.1 | DN100 | 1700 | 1830×1150×2700 |
| 45.0 | 380/50 | 20.1 | DN100 | 1830 | 1830×1150×2790 |
| 50.0 | 380/50 | 20.1 | DN100 | 2000 | 2040×1240×2780 |
| 55.0 | 380/50 | 20.1 | DN100 | 2170 | 2040×1240×2875 |
| 60.0 | 380/50 | 27.1 | DN100 | 2460 | 2130×1300×2790 |
| 65.0 | 380/50 | 27.1 | DN125 | 2650 | 2210×1340×2970 |
| 75.0 | 380/50 | 27.1 | DN125 | 3100 | 2350×1380×2920 |
| 85.0 | 380/50 | 34.1 | DN125 | 3200 | 2350×1380×2920 |
| 95.0 | 380/50 | 34.1 | DN150 | 4000 | 2446×1430×3170 |
| 110.0 | 380/50 | 42.1 | DN150 | 4700 | 2610×1580×3060 |
| 130.0 | 380/50 | 50.1 | DN150 | 5140 | 2900×1400×3079 |
| 150.0 | 380/50 | 55.1 | DN200 | 6100 | 3100×1580×3274 |
Note: If the air flow exceeds 150 m³/min or if special specifications, materials, or temperature requirements are needed, please contact our company or agents for technical consultation. The above data is for reference only and may change without notice. For other specifications, please contact us directly.
In the Philippines, where high humidity, elevated ambient temperatures, heavy seasonal rainfall, and coastal operating conditions can increase the risk of condensation and moisture contamination in compressed air systems, micro-heat regenerated adsorption dryers are especially suitable for applications that require a stable low pressure dew point and reliable deep drying performance.
With an outlet dew point of ≤ -40℃, low average regeneration gas consumption of 4%–8%, and adsorption media made of activated alumina and high-performance molecular sieves, this dryer is well suited for industries and systems that demand clean, dry compressed air or non-corrosive gas support under humid environmental conditions.
Recommended applications for the Philippine market include:
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
Ensure safe use in flammable and explosive environments
Resists chemical corrosion and extends service life
Special sealing technology prevents flammable gases or dust from entering the interior of the machine
Regeneration gas consumption can be adjusted, with energy saving and dew point adjustment function
High corrosion resistance
High recycling rate
Easy to clean and maintain
Stable performance
Easy to maintain
Highly efficient pneumatic controller
Intelligent and user-friendly design
High-efficiency adsorbents are used, with strong adsorption capacity and wear resistance, ensuring stable dew point and no powdering during long-term use;
The heater is equipped with pressure protection to prevent the heater from dry burning, which increases the service life of the heater.
Low operating noise;
High-performance pneumatic valves are used;
Fully electronic programmable controller is used;
Automatic pressure charging function ensures the service life of the adsorbent;
