Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1 bar;
Frequency conversion energy saving: Brand inverter, frequency conversion range 30Hz~90Hz, by changing the electromechanical frequency of the dryer to match the actual working conditions;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensure the machine runs in the best state, and standard RS-485 communication interface.

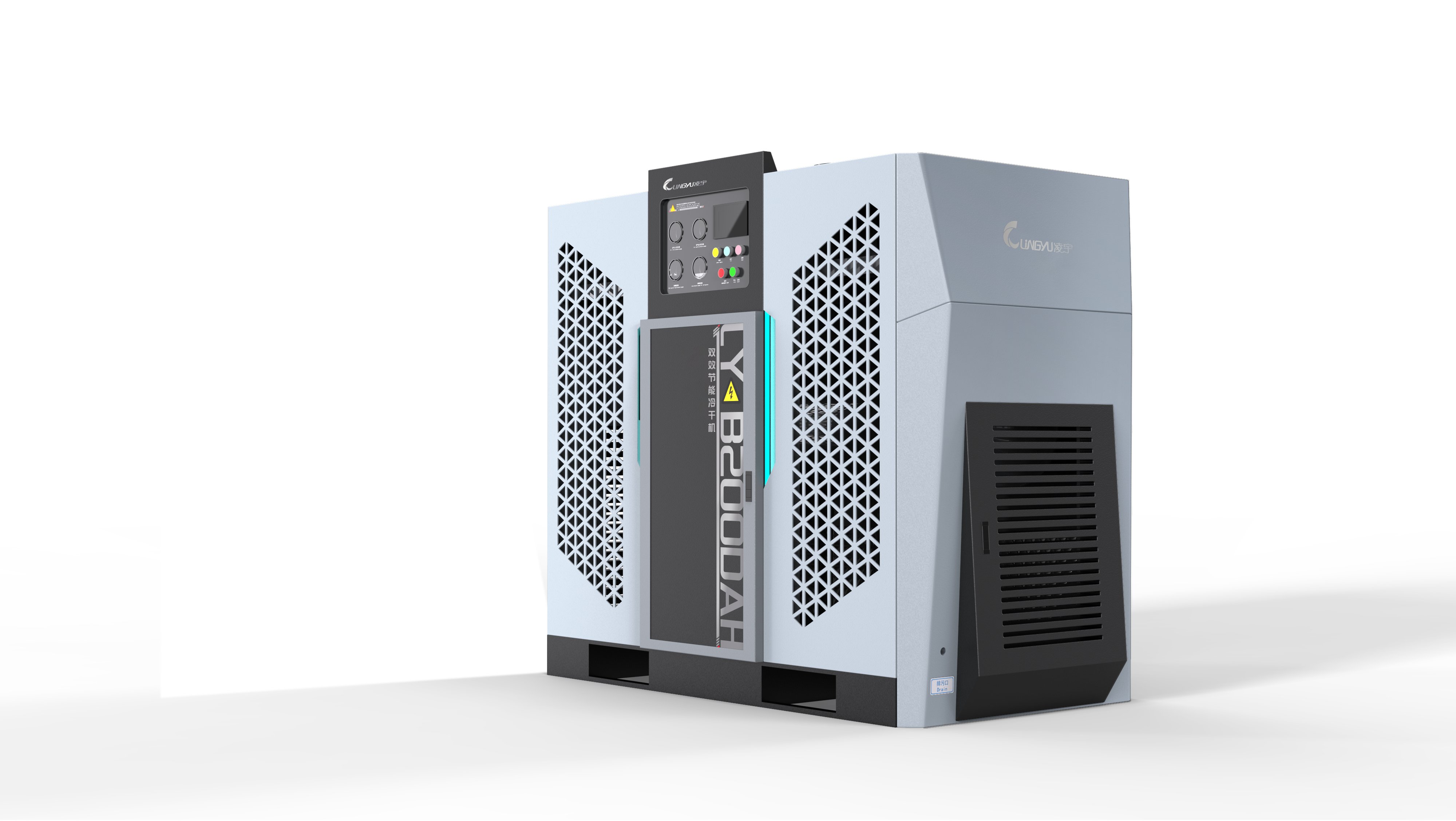

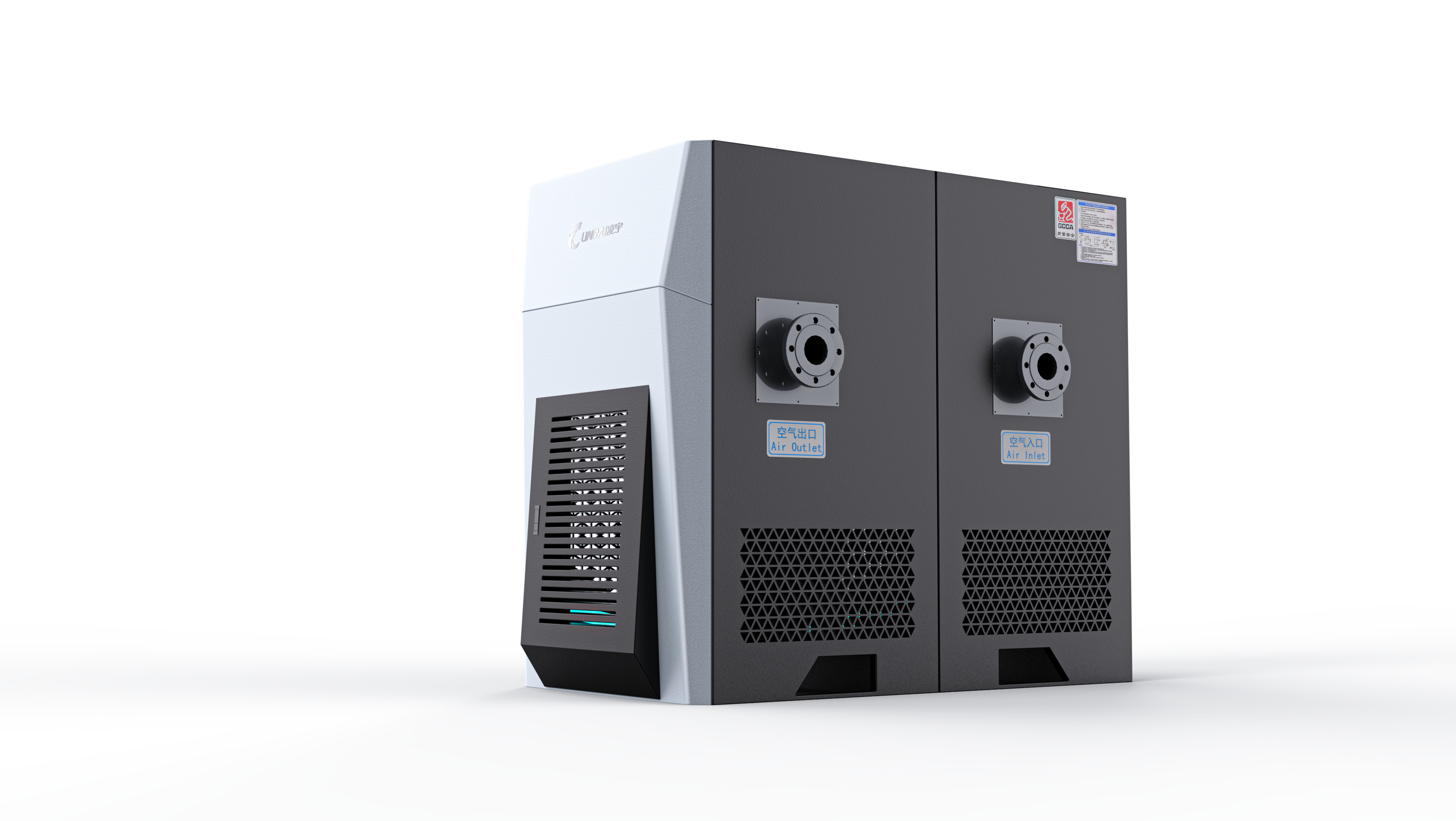

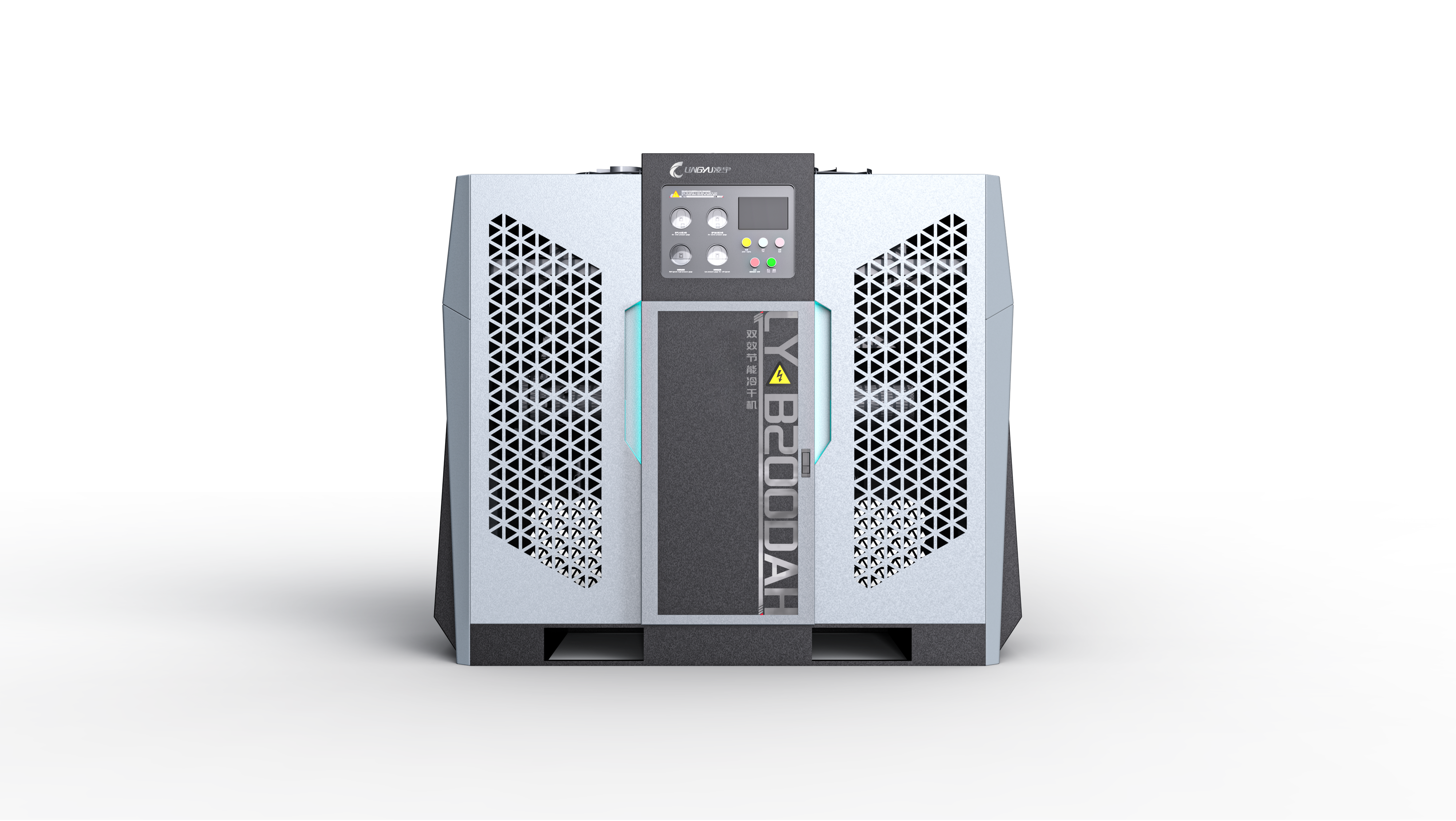

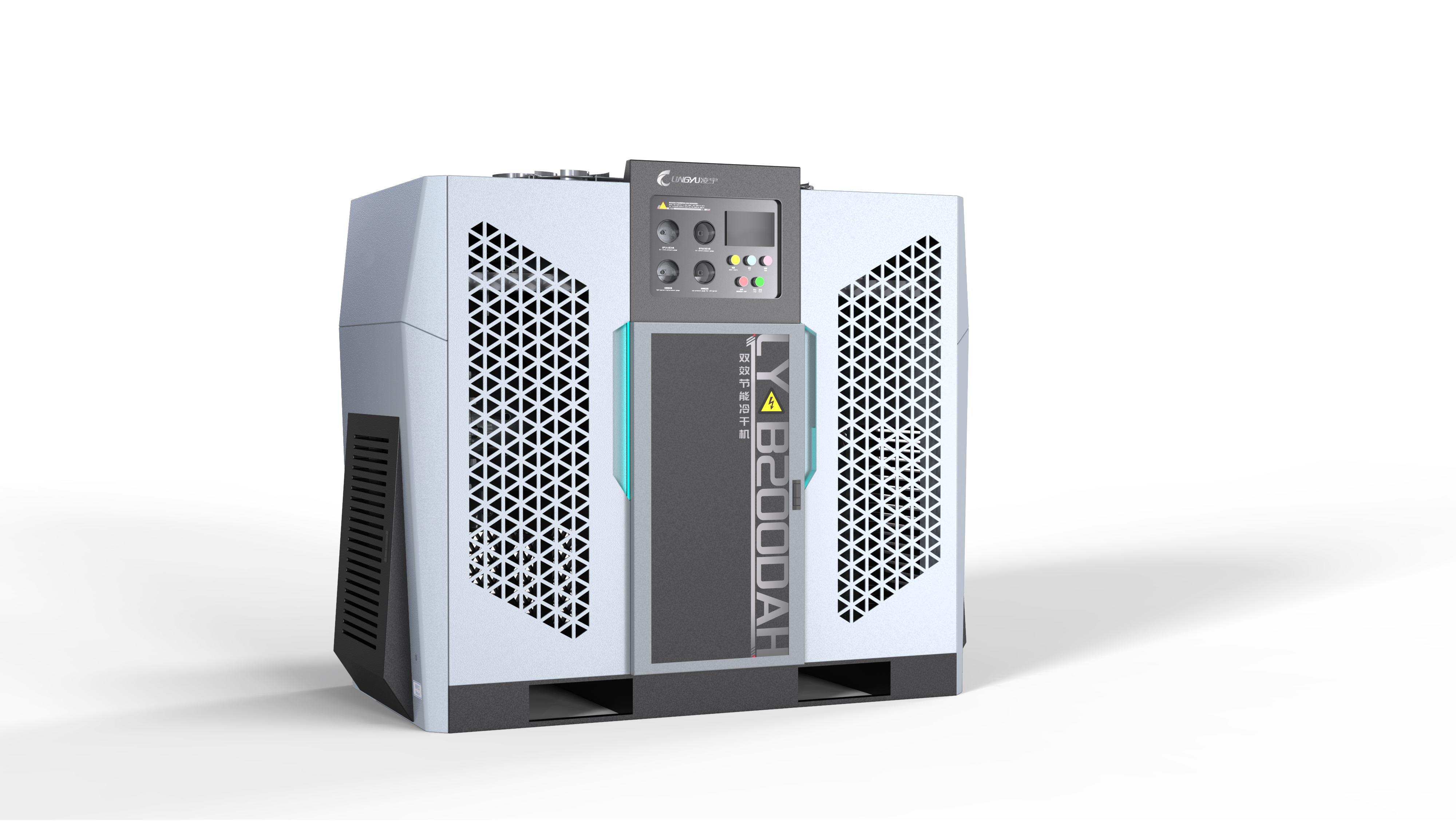

The Frequency Conversion Refrigerated Air Dryer is designed to deliver stable, energy-efficient moisture removal for industrial compressed air systems. By using variable-speed frequency conversion control, the refrigeration system automatically adjusts its operating output according to the actual air-load demand. This helps reduce energy consumption while maintaining a consistent outlet dew point.
The dryer features a centrally mounted evaporator core within the heat-exchange assembly, which reduces cooling loss and improves overall heat-transfer efficiency. As a result, more cooling capacity is directed to the pre-cooler, allowing faster temperature reduction and more effective moisture condensation.
A newly designed integrated water separator, equipped with 304 stainless-steel wire mesh, provides highly efficient vapor-liquid separation. Condensed water is removed thoroughly from the compressed air stream, ensuring clean and dry air for downstream equipment and demanding production environments.
To ensure stable performance and reliable long-term operation, the Frequency Conversion Refrigerated Air Dryer should be used under the following recommended conditions:
For the best drying result, the dryer should be installed in a well-ventilated environment with stable inlet conditions. Proper pre-filtration is recommended to protect the internal heat-exchange system and maintain efficient condensate separation over long-term operation.
| Model | Flow Rate (m³/min) | Total Power (kW) | Interface Size | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| LY-DB30A | 3.8 | 0.44–1.25 | G1 1/2″ | 105 | 1000 × 600 × 1050 |
| LY-DB50A | 7.0 | 0.48–1.42 | G1 1/2″ | 130 | 1100 × 600 × 1100 |
| LY-DB75A | 10.5 | 0.60–1.90 | G2″ | 155 | 1250 × 700 × 1155 |
| LY-DB100A/W | 13.5 | 0.80–3.60 | G2 1/2″ | 350 | 1400 × 850 × 1350 |
| LY-DB120A/W | 17.0 | 1.02–3.61 | DN80 | 450 | 1570 × 800 × 1200 |
| LY-DB150A/W | 21.5 | 1.02–4.03 | DN80 | 480 | 1500 × 950 × 1400 |
| LY-DB180A/W | 25.0 | 1.4–5.5 | DN80 | 530 | 1835 × 940 × 1480 |
| LY-DB200A/W | 28.5 | 1.40–6.20 | DN80 | 540 | 1835 × 940 × 1480 |
| LY-DB250A/W | 32.0 | 2.02–7.58 | DN80 | 560 | 1835 × 940 × 1480 |
| LY-DB300A/W | 37.0 | 1.83–6.75 | DN100 | 680 | 1900 × 980 × 1580 |
| LY-DB400A/W | 45.0 | 2.39–9.56 | DN100 | 780 | 1900 × 980 × 1580 |
| LY-DB500A/W | 55.0 | 1.13–10.49 | DN125 | 910 | 2300 × 1000 × 1750 |
| LY-DB600A/W | 65.0 | 1.70–11.20 | DN125 | 1050 | 2300 × 1000 × 1750 |
| LY-DB700A/W | 75.0 | 4.18–12.16 | DN125 | 1100 | 2490 × 1200 × 2220 |
| LY-DB800A/W | 85.0 | 4.5–14.30 | DN125 | 1150 | 2490 × 1200 × 2220 |
| LY-DB900A/W | 95.0 | 4.6–18.8 | DN150 | 1750 | 2450 × 1200 × 2250 |
| LY-DB1100A/W | 110 | 5.1–21.2 | DN150 | 1680 | 2450 × 1200 × 2250 |
| LY-DB1200A/W | 120 | 5.6–22.8 | DN150 | 1680 | 2450 × 1200 × 2250 |
Note: For capacities above 120 m³/min, or for special requirements related to materials or inlet temperature, customized solutions are available. All data is subject to change without prior notice.
In the Philippines, where high humidity, warm ambient temperatures, and seasonal heavy rainfall can increase the moisture load on compressed air systems, the Frequency Conversion Refrigerated Air Dryer is especially suitable for industrial users that require stable moisture removal, consistent dew point performance, and lower energy consumption under changing air-load conditions. With variable-speed refrigeration control, an efficient heat-exchange structure, and highly effective condensate separation, this dryer is well suited for factories that want dependable dry compressed air together with improved operating efficiency in tropical environments.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The 25/35/50 CFM Air-Cooled Refrigerated Air Dryer from Lingyu is a compact and energy-efficient solution for small to medium compressed air systems. It efficiently removes moisture and maintains a stable dew point, providing clean, dry air for tools, machinery, and production processes.
With its reliable air-cooled design, low power consumption, and easy operation, this dryer series helps improve air system performance, reduce maintenance costs, and protect equipment from moisture-related damage.
The 200 CFM refrigerated air dryer (air cooled) is a compact and efficient solution for removing moisture from compressed air systems. Designed for mid-sized industrial applications, this dryer ensures clean, dry air to protect downstream equipment from corrosion, contamination, and failure.
With air-cooled technology and stable dew point performance, the 200 CFM refrigerated air dryer (air cooled) offers a reliable and energy-saving approach to compressed air drying.
The 4238 CFM refrigerated air dryer (water cooled) is a high-capacity, industrial-grade dryer designed to eliminate moisture from large compressed air systems. Built with a powerful water-cooled refrigeration circuit, this dryer ensures reliable and continuous moisture removal with a stable pressure dew point. For industries that demand high airflow rates and dependable air quality, the 4238 CFM refrigerated air dryer (water cooled) is the ideal solution.
Whether operating in petrochemical, textile, food processing, or manufacturing sectors, the 4238 CFM refrigerated air dryer provides exceptional performance, energy efficiency, and long-term durability.
The air is pure, no secondary pollution, integrated skid-mounted design, compact structure, stable dew point, remarkable water removal effect.
Stainless steel plate heat exchanger with high heat exchange efficiency and compact structure.
Independent stainless steel steam-water separator with high water separation efficiency, timely separates condensed water and other impurities from compressed air and discharges them out of the machine.
The whole machine is made of stainless steel or aluminum alloy, which will not rust and prevent secondary contamination of compressed air.
Single chip intelligent control, real-time display of evaporation temperature, including over-temperature alarm, electrical fault, high pressure alarm, low pressure alarm and other functions.
