Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
Ensure safe use in flammable and explosive environments
Resists chemical corrosion and extends service life
Special sealing technology prevents flammable gases or dust from entering the interior of the machine
Regeneration gas consumption can be adjusted, with energy saving and dew point adjustment function

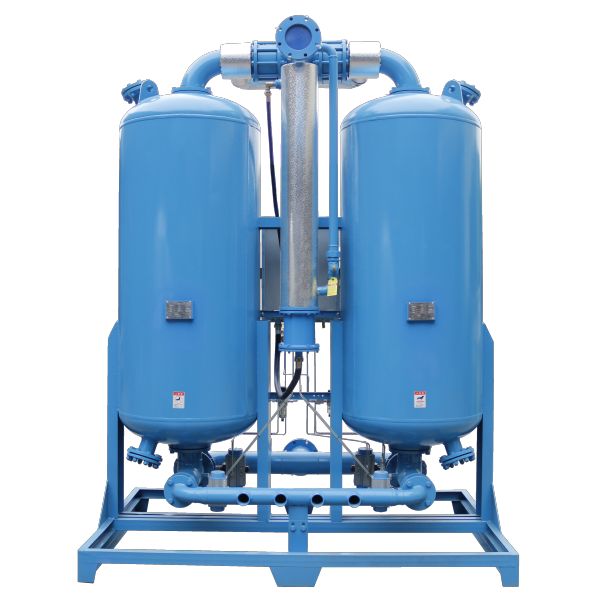

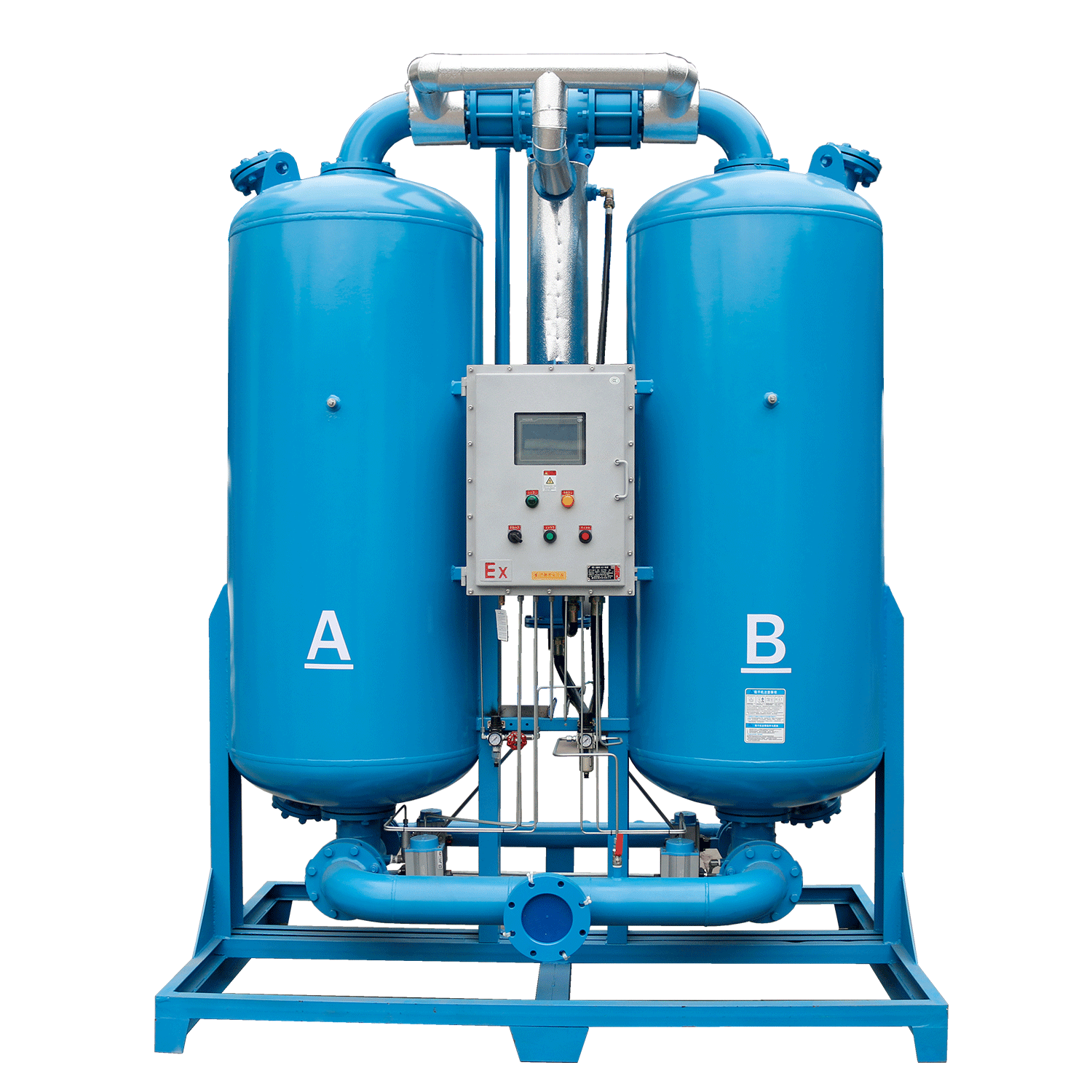

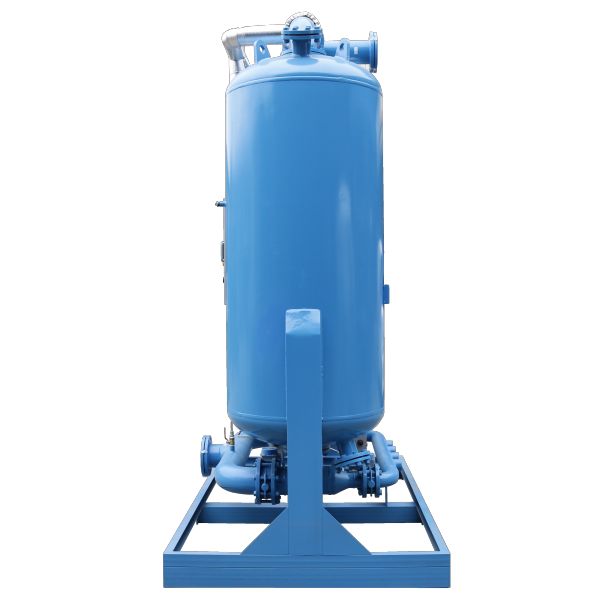

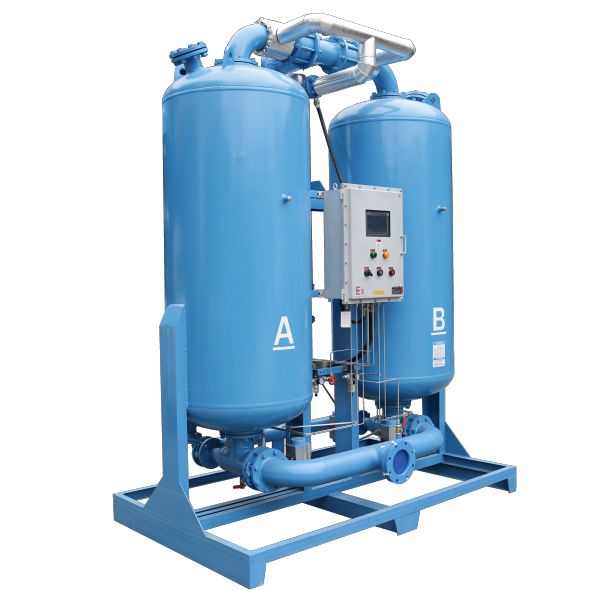

The explosion-proof adsorption dryer is specially designed for hazardous industrial environments where flammable gases, explosive dust, or volatile chemicals may be present. It delivers dry and safe compressed air while reducing the risk of ignition caused by sparks, overheating, or electrical hazards.
This dryer works through an adsorption and regeneration process. Moisture in the compressed air is removed by high-performance desiccant inside the drying tower. While one tower is drying the compressed air, the other tower is regenerated to restore adsorption capacity. By alternating between these two towers, the system ensures a continuous supply of dry compressed air.
With explosion-proof electrical components, safe structural design, and reliable control systems, the dryer is suitable for high-risk applications requiring both low dew point performance and operational safety.
To ensure safe and stable operation, the explosion-proof adsorption dryer should be used under the following recommended conditions:
The system is designed for industrial users that require a reliable source of dry compressed air in potentially explosive environments. Proper pre-filtration and stable inlet conditions are recommended to maintain drying efficiency and protect the desiccant service life.
| Parameter | Specification |
|---|---|
| Applicable Fluids | Compressed air, non-corrosive air |
| Inlet Air Flow Rate | Std. 65.0 Nm³/min |
| Working Principle | Adsorption drying with alternating tower operation |
| Working Cycle | 90–240 min (adjustable) |
| Average Regeneration Gas Consumption | Std. 6% |
| Inlet Air Pressure | Std. 7 bar |
| Pressure Loss (Full Load) | 0.2 bar |
| Inlet Air Oil Content | Oil-free or ≤0.1 ppm (mg/m³) |
| Inlet Air Temperature | 10–30℃ |
| Inlet Air Dew Point | ≤15℃ |
| Outlet Gas Dew Point | ≤ -40℃ (under standard conditions) |
| Working Environment Temperature | Min. 2℃ |
Explosion-proof adsorption dryers are widely used in industries where compressed air must remain both dry and safe under hazardous operating conditions.
Used in applications involving flammable gases, solvents, and volatile chemicals. The dryer helps provide stable dry air while improving operational safety in high-risk processing environments.
Suitable for underground or dust-laden environments where explosion prevention is critical. Dry compressed air supports pneumatic equipment while reducing ignition risks.
Ensures clean, dry compressed air for sensitive production processes. It helps maintain product quality, process stability, and safe plant operation.
Provides dry compressed air for packaging, conveying, and automated production lines, especially in applications requiring hygienic and reliable air quality.
Well suited for areas where flammable vapors and solvents are present. The explosion-proof design helps reduce fire hazards during spraying, coating, and finishing processes.
Supports safe compressed air drying in production environments handling combustible fibers and dust.
Used in critical systems that demand safe, reliable, and low-dew-point compressed air under strict operating requirements.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
Quiet operation with low noise;
Utilizes high-performance pneumatic valves;
Equipped with a fully electronic programmable controller;
Automatic pressure loading function ensures the longevity of the desiccant;
Heater includes pressure protection to prevent dry burning, extending the heater’s service life;
Uses high-performance desiccant with strong adsorption and wear resistance, ensuring stable dew point and preventing powdering during long-term operation.
High corrosion resistance
High recycling rate
Easy to clean and maintain
Stable performance
Easy to maintain
Highly efficient pneumatic controller
Intelligent and user-friendly design
High-efficiency adsorbents are used, with strong adsorption capacity and wear resistance, ensuring stable dew point and no powdering during long-term use;
The heater is equipped with pressure protection to prevent the heater from dry burning, which increases the service life of the heater.
Low operating noise;
High-performance pneumatic valves are used;
Fully electronic programmable controller is used;
Automatic pressure charging function ensures the service life of the adsorbent;
