Lingyu’s advanced desiccant air dryers are engineered to provide robust equipment protection and peak performance. By removing all traces of moisture, our desiccant dryers ensure your compressed air system operates smoothly, reducing downtime and boosting productivity.
Our industrial desiccant air dryers deliver ultra-low dew points (-40°C to -70°C / -40°F to -94°F), making them ideal for moisture-sensitive processes in pharmaceuticals, electronics, food & beverage, petrochemicals, and other demanding industries.
Explore our full range of desiccant air dryers below and request a quote to select the ideal solution for your compressed air system.
Quiet operation with low noise;
Utilizes high-performance pneumatic valves;
Equipped with a fully electronic programmable controller;
Automatic pressure loading function ensures the longevity of the desiccant;
Heater includes pressure protection to prevent dry burning, extending the heater’s service life;
Uses high-performance desiccant with strong adsorption and wear resistance, ensuring stable dew point and preventing powdering during long-term operation.
Advanced design of refrigeration drying system and adsorption drying system
Integrated design: small footprint, easy to install, after years of technical research, modern technology and equipment production, each product is strictly tested to meet the use of standards before leaving the factory.
Integrated design: small footprint, easy to install, after years of technical research, modern technology and equipment production, each product is strictly tested to meet the use of standards before leaving the factory.
Stable outlet dew point
Minimum regeneration gas consumption
Long service life of adsorbent
Easy maintenance
High safety
High reliability
Adjustable regeneration gas consumption
Optional dew point monitoring and control system
Stable outlet dew point
Minimum regeneration gas consumption
Long service life of adsorbent
Easy maintenance
High safety
High reliability
Adjustable regeneration gas consumption
Optional dew point monitoring and control system

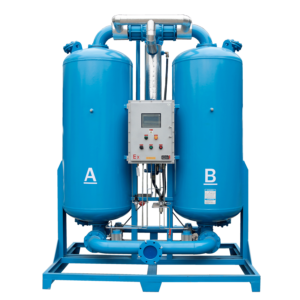

Ensure safe use in flammable and explosive environments
Resists chemical corrosion and extends service life
Special sealing technology prevents flammable gases or dust from entering the interior of the machine
Regeneration gas consumption can be adjusted, with energy saving and dew point adjustment function

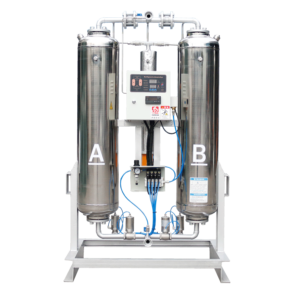

High corrosion resistance
High recycling rate
Easy to clean and maintain
Stable performance
Easy to maintain
Highly efficient pneumatic controller
Intelligent and user-friendly design
High-efficiency adsorbents are used, with strong adsorption capacity and wear resistance, ensuring stable dew point and no powdering during long-term use;
The heater is equipped with pressure protection to prevent the heater from dry burning, which increases the service life of the heater.
Low operating noise;
High-performance pneumatic valves are used;
Fully electronic programmable controller is used;
Automatic pressure charging function ensures the service life of the adsorbent;

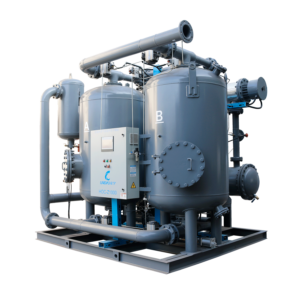

The Blower & Zero Purge Adsorption Dryer is an advanced solution for industrial compressed air systems, designed to provide continuous, energy-efficient moisture removal.
This dryer combines blower-assisted regeneration with a zero purge cycle, ensuring the regeneration process consumes no compressed air. Ambient air is drawn in by the blower, heated to desorb moisture from the adsorbent, and then cooled through an intermediate cooler in a continuous closed-loop cycle. The result is a stable low dew point with minimal energy usage, protecting downstream equipment and ensuring consistent air quality in industrial operations.
The independently developed EBZ200-2 multi-core driver can save more than 10% of the comprehensive energy consumption compared with the fixed cycle mode;
The communication can meet the user's requirements such as RS-485 (standard), IoT connection, etc.
The optional dew point energy-saving control can extend the adsorption time and reduce the comprehensive energy consumption by more than 30% under load fluctuation conditions;
Customized high-performance adsorbent, 20% filling margin;
304 stainless steel control gas pipeline, specially designed diverter, high adsorbent utilization rate, small gas pressure loss;
7-inch Siemens touch screen programmable controller, dynamic monitoring of operation process；
Equipped with a dew point meter, it can be adjusted to normal pressure dew point or pressure dew point, and the dew point is stable
The display controller uses a Siemens touch screen, has an RS-485 communication interface, and provides a communication protocol;
The pneumatic valve control solenoid valve uses a double-coil structure, a double-eccentric high-temperature resistant high-performance butterfly valve, and is equipped with a valve position switch reply device. The abnormal shutdown and power-off valve can maintain the valve action, and short-term maintenance does not affect the ventilation state, and the reliability is stronger;
Communication can meet the user's requirements such as RS-485 (standard), Internet of Things connection, etc.;
Energy saving - self-developed EBZ200-2 multi-core driver, compared with the fixed cycle mode, can save more than 10% of comprehensive energy consumption;
Dew point energy-saving control (optional), in the working condition of load fluctuation, it can extend the adsorption time and reduce the comprehensive energy consumption by more than 30%;
Customized high-performance adsorbent, 20% filling margin;
High-performance pneumatic valve, high-efficiency cooler designed by HTFS software, reliable performance and long life;
Metal control gas pipeline, beautiful and generous;
Specially designed diverter, high adsorbent utilization rate, small gas pressure loss;
Siemens touch screen programmable controller, dynamic monitoring of operation process, signal acquisition includes: air outlet temperature, heating temperature, regeneration exhaust temperature, A/B tower pressure blower pressure, dew point temperature (optional);
Desiccant air dryers are industrial devices designed to achieve extremely low dew points by adsorbing moisture from compressed air. Using high-quality desiccant materials, our dryers remove water vapor efficiently, delivering ultra-dry air essential for sensitive processes.
Desiccant air dryers enhance the quality, reliability, and safety of compressed air systems. They protect both equipment and final products by preventing moisture-related issues.
Ultimate Moisture Protection: Achieve ultra-low dew points to prevent liquid water formation in pipelines, protect pneumatic tools, and ensure consistent product quality.
Ensuring Product Integrity: Even microscopic moisture can compromise sensitive manufacturing processes. Our desiccant dryers guarantee consistently clean, dry air to safeguard your production line.
Maximizing System Uptime: Dry air improves the reliability and longevity of your compressed air system, reducing maintenance needs and preventing costly downtime.
Compliance with Industry Standards: Advanced technology ensures adherence to strict industrial and safety regulations requiring ultra-dry air, providing operational security and peace of mind.

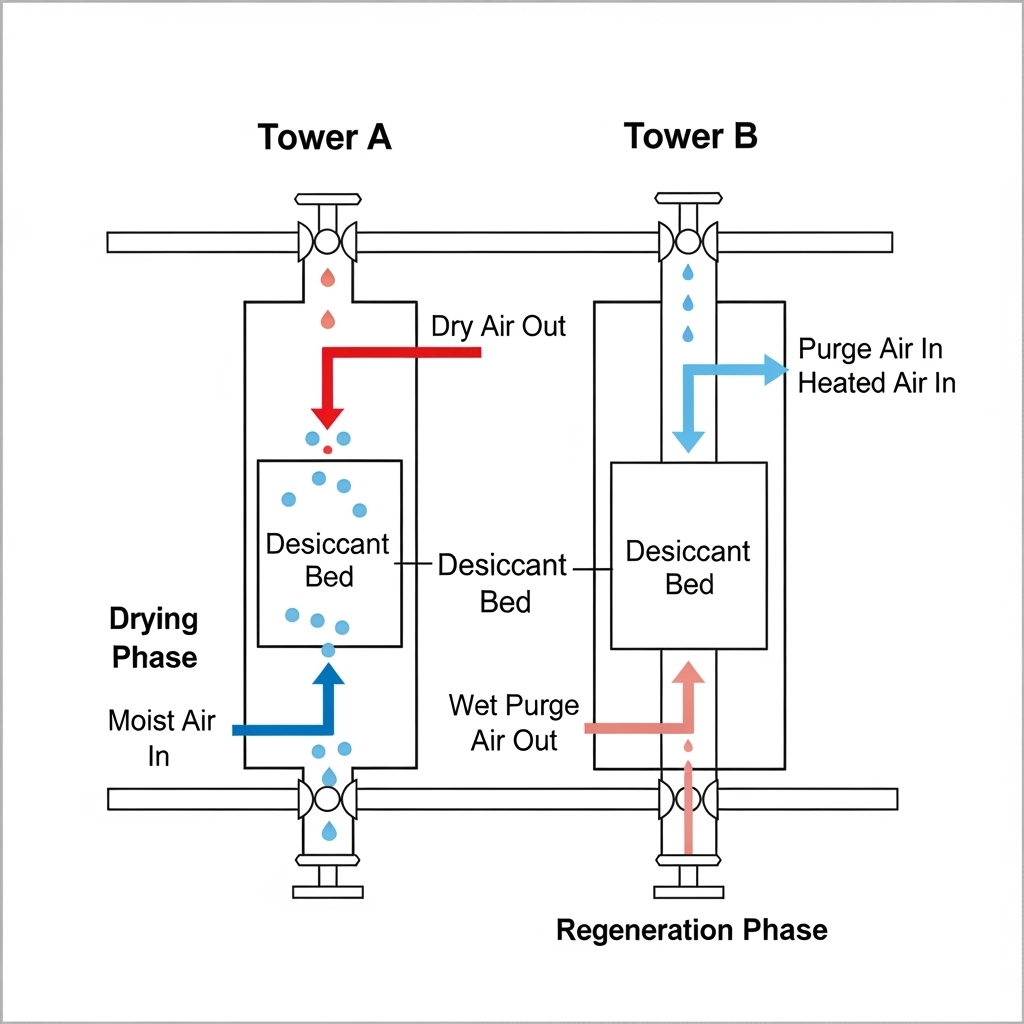

Desiccant air dryers operate on the principle of adsorption, typically using a dual-tower configuration for continuous operation.
Moist compressed air enters one tower packed with high-quality desiccant material such as activated alumina or silica gel. The desiccant captures water vapor, lowering the dew point to the desired level. The now-dry air exits the tower and continues downstream to your system.

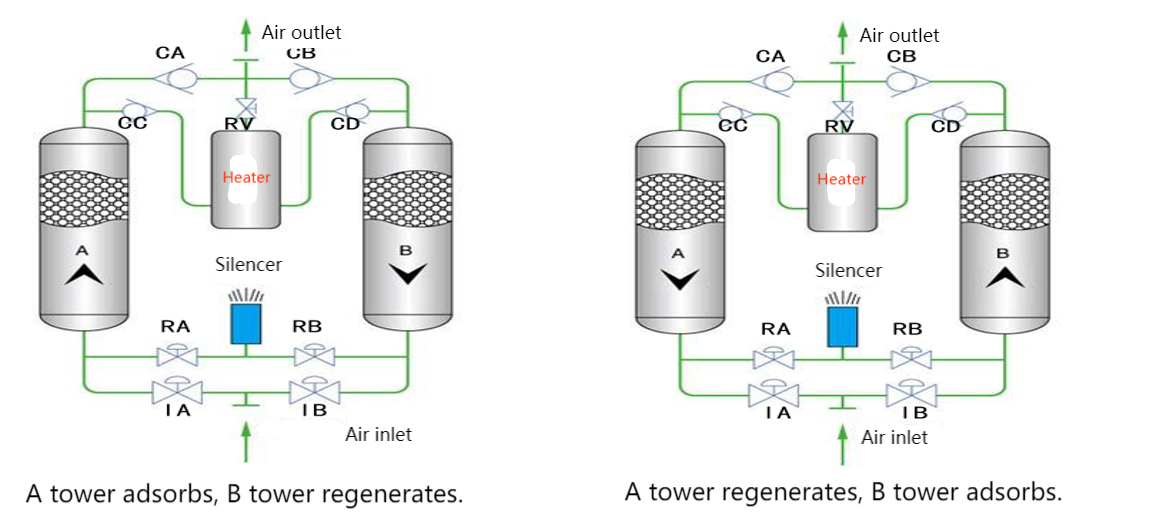

While one tower dries the air, the second tower regenerates the desiccant by expelling absorbed moisture. Depending on the dryer type (heatless, blower-heated, or compression-heated), regeneration is achieved using a portion of dry air or an external heat source.
Our control system automatically manages tower cycling, ensuring one tower is always in operation while the other regenerates. This provides a constant supply of ultra-dry compressed air without interruption.
Lingyu offers a comprehensive range of desiccant air dryers, each engineered to meet specific operational and industrial requirements.
These dryers use a portion of dried compressed air to regenerate the desiccant without external heat. They are robust, low-maintenance, and ideal for lower-duty applications or simple, reliable drying needs.
Engineered for superior energy efficiency, these dryers use external heat to minimize purge air consumption. Our lineup includes Blower-Heated and Compression-Heated models, maximizing energy savings and performance for higher-volume applications.
Compact and scalable, modular desiccant dryers are perfect for smaller footprints or operations requiring flexible expansion. Their design simplifies installation and maintenance while delivering reliable ultra-dry air for growing businesses or space-limited environments.
